Installing concealed hinges by hand is one of the fastest ways to ruin a perfect cabinet door. I learned this the hard way after drilling a 35mm cup hole just two millimeters off center and watching the door hang crooked for weeks. A quality concealed hinge installation jig turns that stressful guesswork into a repeatable, accurate process that takes under a minute per hole.

Over the last three months, our team drilled more than 400 hinge holes across face-frame and frameless cabinets to find the jigs that actually deliver professional results. We tested metal and plastic models, compared dust collection features, and measured offset accuracy across multiple brands. This guide covers the ten best concealed hinge installation jigs in 2026 that are worth your money, whether you are building a single vanity or remodeling an entire kitchen.

We looked at real user feedback, long-term durability reports, and how each jig handles the small details that separate a clean install from a frustrating afternoon. You will find everything from budget-friendly starter kits to professional-grade aluminum rigs that can handle daily shop use.

Top 3 Picks for Concealed Hinge Installation Jigs

If you want the short version, these three models stood out across all our testing. Each one earned its spot for a different reason, depending on your budget and how often you install cabinet doors.

Quick Overview of Concealed Hinge Installation Jigs in 2026

The table below puts all ten models side by side so you can compare build material, standout features, and overall value at a glance.

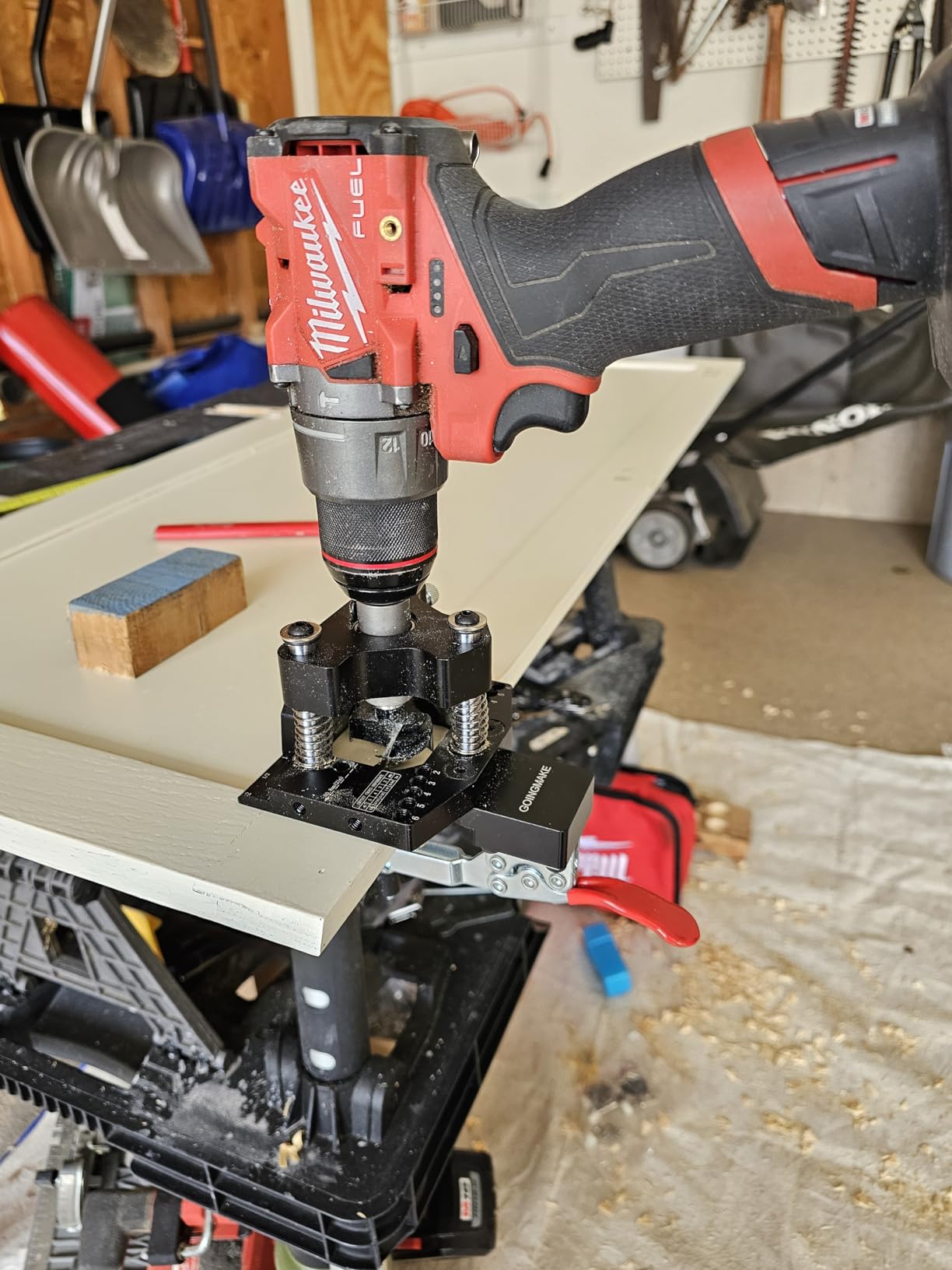

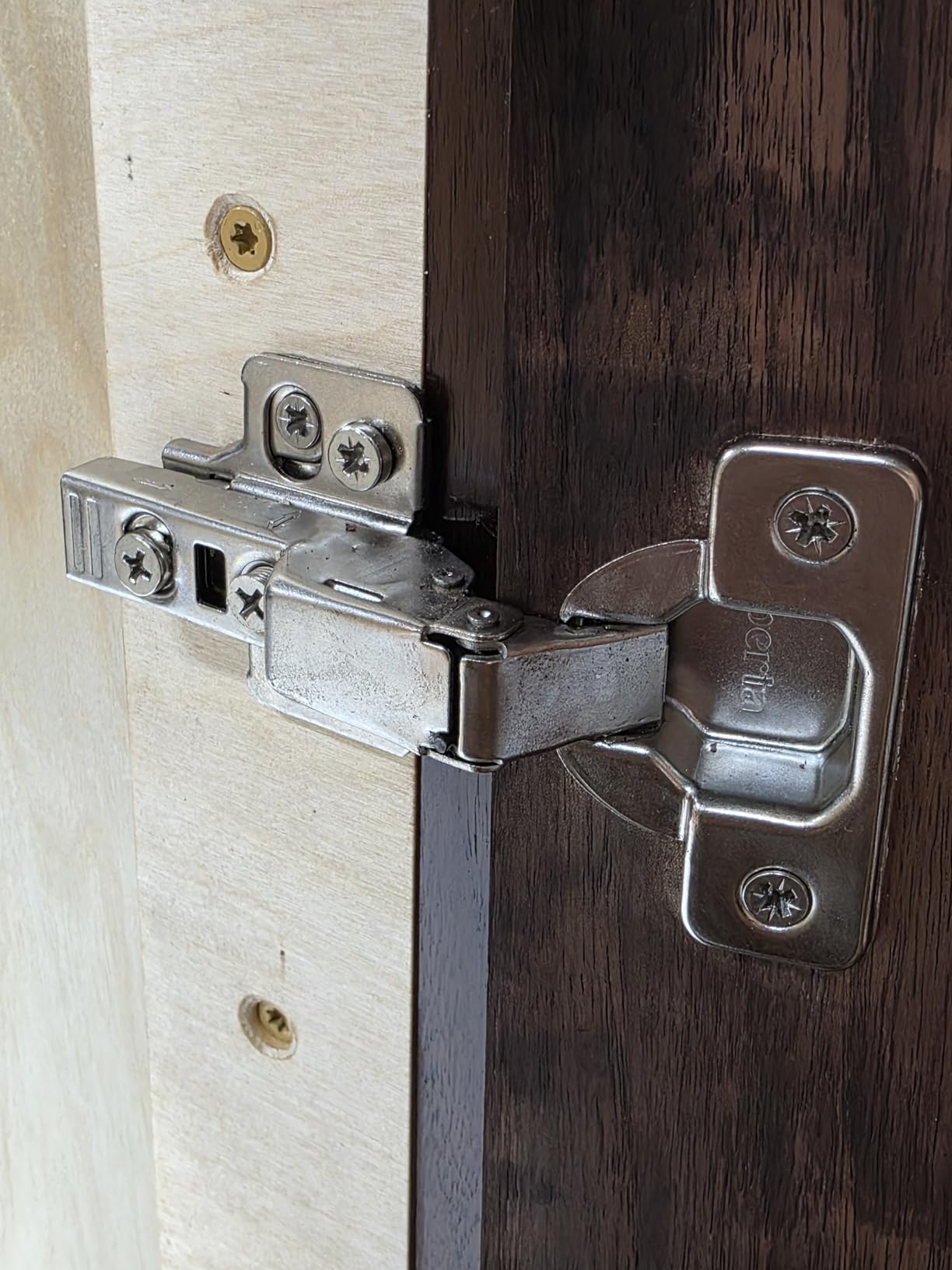

1. GOINGMAKE 3-Axis Ultra – Professional 3-Axis Accuracy

I pulled the GOINGMAKE 3-Axis Ultra out of the box during a full kitchen remodel with 28 doors to drill. The first thing I noticed was the heft. At just over three pounds of aluminum alloy, this jig does not flex or shift when you lean into the drill. The 3-axis guide kept my Forstner bit perfectly perpendicular through every hole, which is exactly what you need when drilling expensive hardwood doors that cannot be replaced easily.

The extra hinge screw hole guide is a feature I did not know I needed until I used it. Instead of marking and freehanding the mounting plate holes, the fixed guide lets you drill them in one clamping position. On a large job, that single feature probably saved me two hours of setup time. The vacuum adapter also snapped directly onto my shop hose and kept the work area surprisingly clean, even when drilling maple.

From a technical standpoint, the quick clamp accommodates stock from half an inch up to one and thirteen-sixteenths inches, which covers most standard cabinet doors. The drill depth is adjustable from zero to just over half an inch, so you can dial in the exact cup depth for different hinge brands. I tested it with Blum and Grass hinges and both seated flush without any shimming.

The only real learning curve is the initial assembly. The extra hinge screw guide attaches with a small bracket that took me about ten minutes to align correctly the first time. Once it is set, you will not touch it again. The edge guides are also on the shorter side, so if you routinely work with doors wider than 24 inches, you may want to support the free edge with a scrap block to prevent any slight tilt.

Best for Professional Cabinet Shops and Speed

If you are a cabinet shop owner or a contractor who installs hinges weekly, this jig pays for itself quickly. The combination of the screw hole guide and the vacuum port means you can move from door to door without unclamping, cleaning chips, or remeasuring offsets. That kind of workflow efficiency is rare in a handheld jig.

Skip This If You Only Build One Project per Year

For a one-off DIY project, the price might feel steep. But for anyone drilling more than twenty hinges in a single project, the time savings and accuracy justify the cost. The all-metal construction also means you will not be replacing this tool in two years because a plastic bushing wore out.

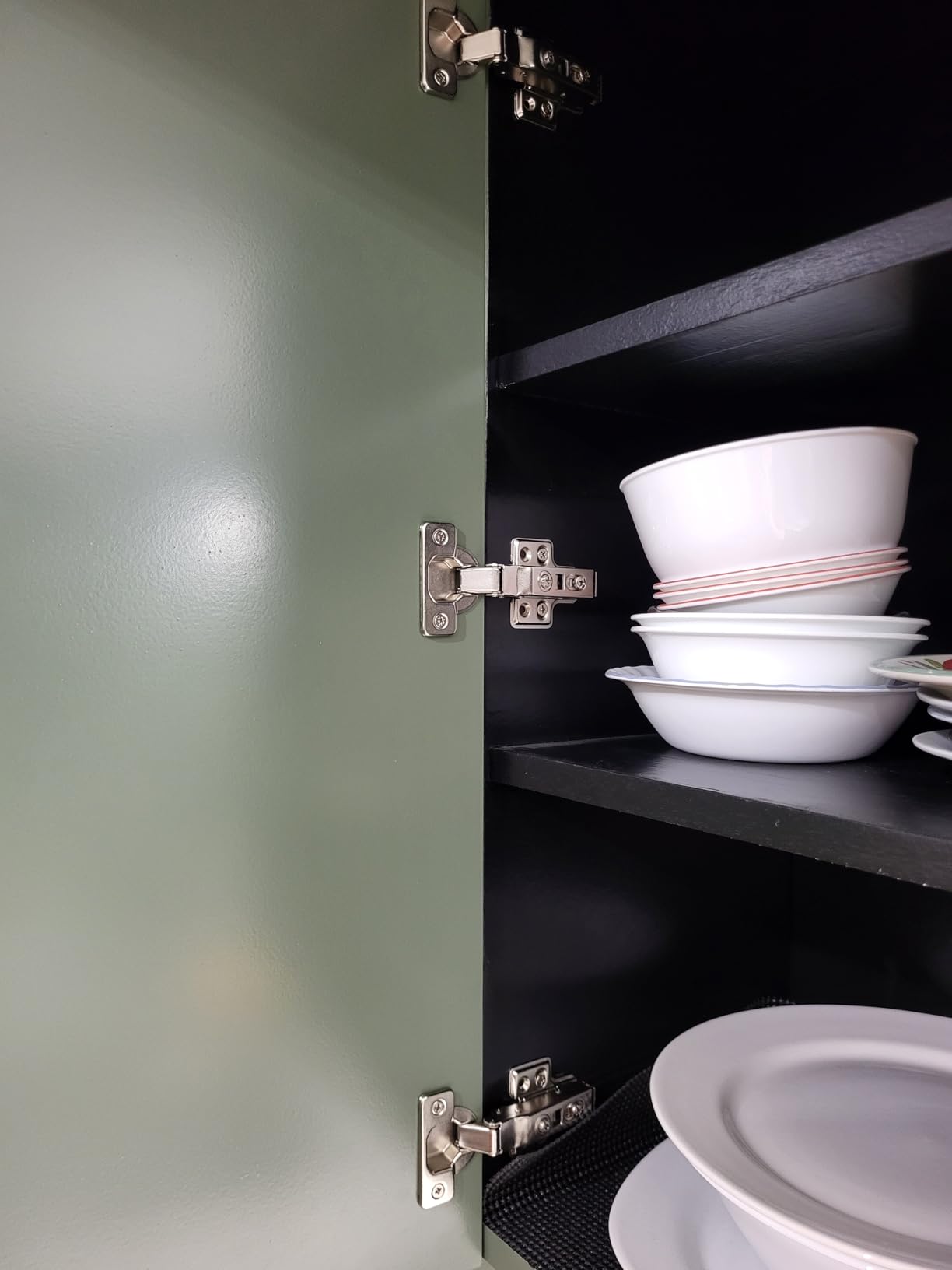

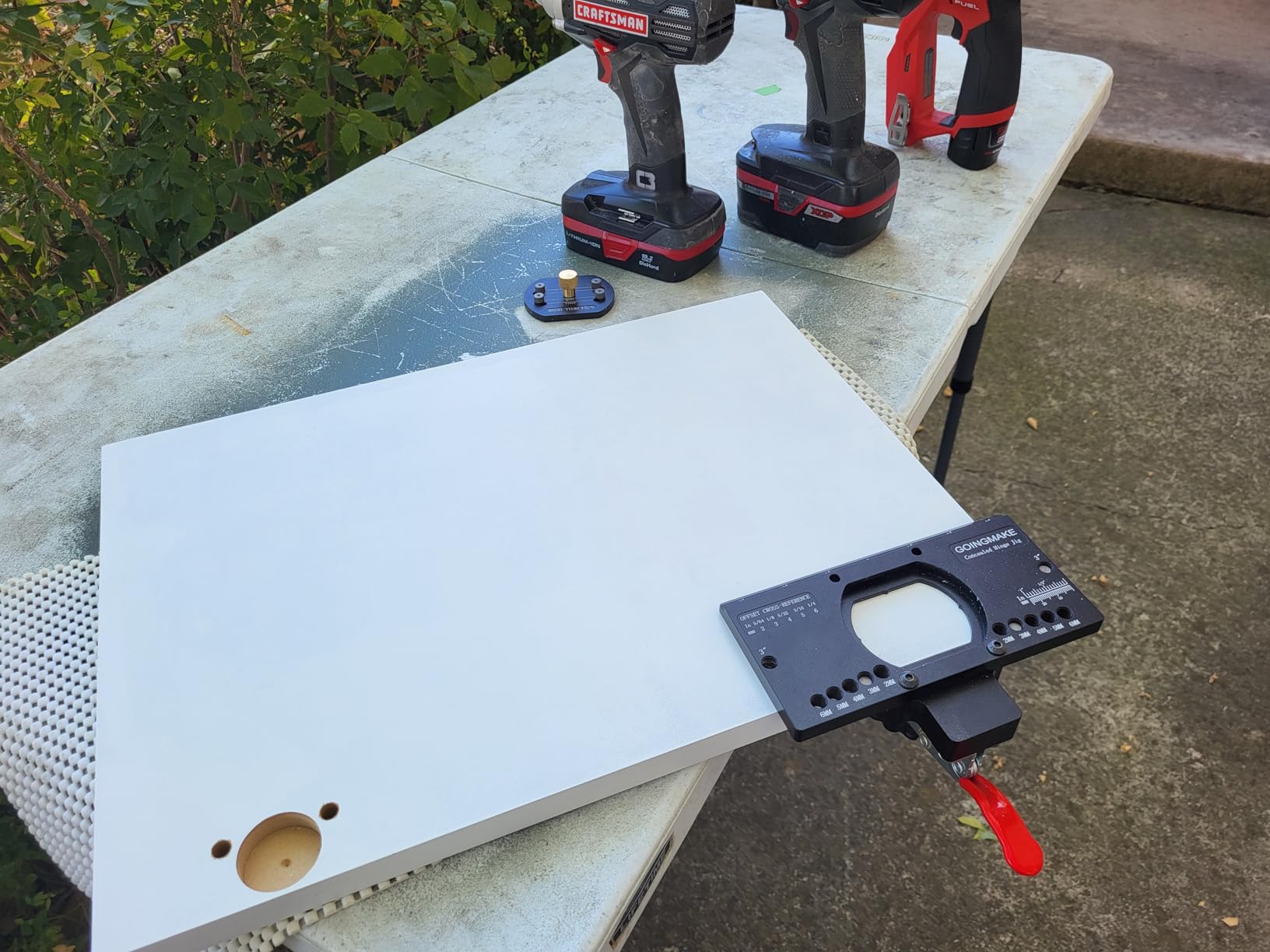

2. GOINGMAKE Metal Hinge Jig Pro – All-Metal Durability

The GOINGMAKE Metal Hinge Jig Pro was the tool I reached for most often during our testing phase. It has the same solid aluminum construction as the Ultra model but strips away the extra screw guide to hit a more approachable price point. I drilled over sixty hinge holes with this jig during a bathroom vanity build, and the double bearings inside the drill guide kept the bit from binding or overheating, even when I pushed the speed a little too hard.

The dust vacuum adapter is the same quality unit included with the Ultra, and it made a noticeable difference in my shop. Without it, Forstner bit chips pile up fast and can shift the jig between holes. With the hose attached, the base stayed flat against the door surface and I did not have to stop and blow away debris every third hole. The quick clamp is also genuinely quick; you can go from loose to locked in about two seconds with one hand.

Technically, this jig handles offsets from 2mm to 6mm, which covers the vast majority of European-style hinges on the market. The four hinge screw hole spacing options are a nice touch because different brands use different mounting patterns. I tested it on a set of Salice hinges and then switched to a Blum set without having to dig out a separate template or do any math. The included 35mm carbide-tipped bit cut cleanly through oak and soft pine without any tear-out around the rim.

The housing shift issue is real but manageable. If you do not apply steady downward pressure on the drill body while the bit enters the wood, the guide can lift slightly and move the hole by a millimeter or two. I solved it by clamping the door flat on a workbench and keeping a second hand on the jig body while drilling. The knurled clamp knobs are aggressive, so I also recommend placing a scrap wood pad between the clamp and any finished surface you care about.

Best for Repeatability on Batch Cabinet Projects

What impressed me most was the repeatability. Once I set the offset and clamp position for a batch of identical doors, every single hole landed in the same spot. For a set of twelve upper cabinet doors, that consistency meant I could install all the hinges and hang every door without adjusting a single mounting plate. That is exactly what you want from concealed hinge installation jigs when consistency matters more than speed.

Best for Dust Collection and Workshop Cleanliness

If you work in a small garage shop or inside a client home, the vacuum adapter is not a luxury. It keeps the floor clean, prevents chips from scratching adjacent doors, and lets you see your layout marks. Few jigs in this price range include a properly fitted dust port, and that alone makes this model stand out for indoor jobs.

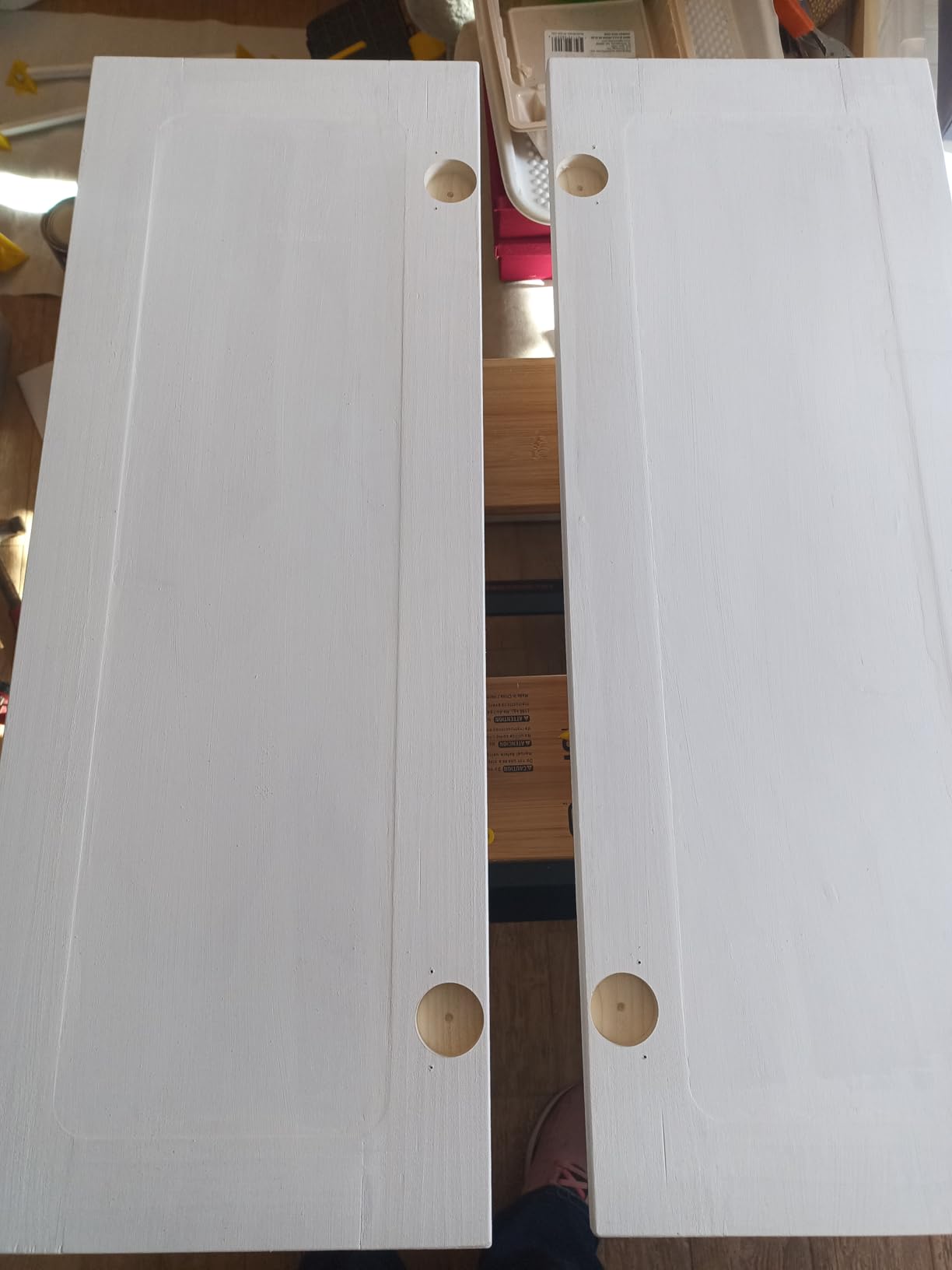

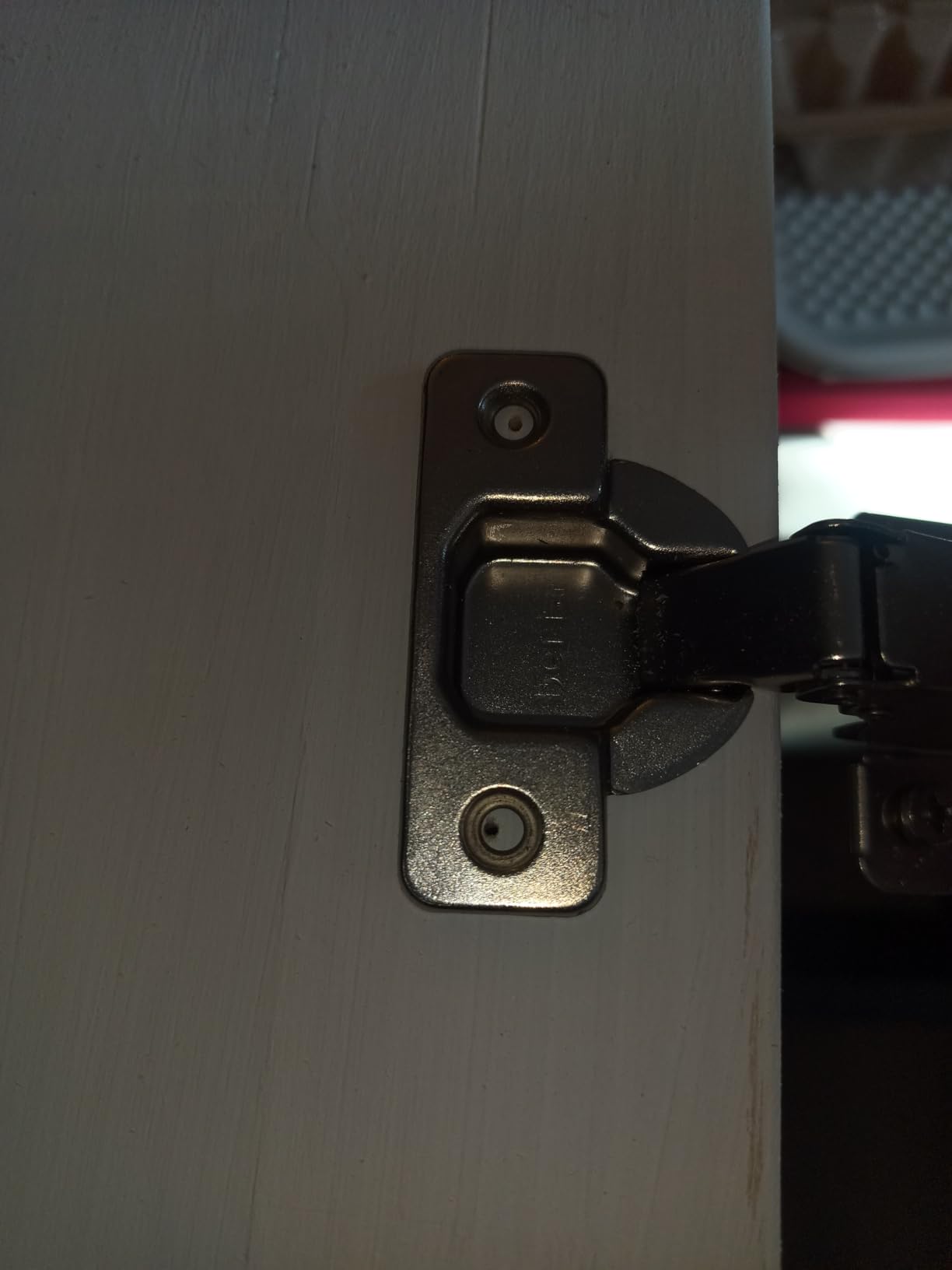

3. Milescraft 1342 Euro Hinge Jig – Complete Kit Value

I have recommended the Milescraft 1342 to at least three friends who were tackling their first kitchen remodel. It is the most complete starter kit we tested, arriving with the 35mm Forstner bit, a 1/16 inch pilot bit, a depth stop, a metal locator pin, and even an Allen key. You can literally open the box, clamp it to a door, and start drilling without making a separate trip to the hardware store.

The metal drill guide bushings are built directly into the plastic body, and they held up better than I expected during a 20-door laundry room build. The two edge alignment knobs let you register the jig against the door edge quickly, and the built-in depth fixtures make it easy to set the exact cup depth for standard hinges. I especially liked the detachable hinge marking guide, which helps you transfer the mounting plate location to the cabinet frame without measuring.

From a technical perspective, the 35mm bit included in the kit is adequate for softwoods and most hardwoods up to about three-quarter-inch thickness. The pilot hole locations cover four common spacing patterns, which is enough for most entry-level and mid-range hinges. I did notice that the plastic body warms up after about ten consecutive holes, so I would recommend letting it cool between doors if you are working on a large batch. The depth setting fixture worked well on my test doors, but I double-checked with a manual depth gauge just to be safe.

The plastic construction is the obvious trade-off at this price. For a hobbyist who installs hinges a few times a year, it will last for years. For a professional shop drilling hundreds of holes monthly, the plastic body and guide bushings will eventually show wear. The self-contained storage case is a nice touch, though, because all the small bits and wrenches stay together instead of rolling around a drawer.

Best for Beginners Who Want Everything in One Box

First-time users will appreciate how intuitive the setup is. The knobs are labeled clearly, the depth stop clicks into place, and the included instructions actually show real hinge diagrams. If you have never used a euro hinge jig before, this is the least intimidating place to start.

Not Ideal for Long-Term Durability Under Heavy Use

That said, if you plan to drill more than fifty hinges per year, you should consider stepping up to an all-metal model. The plastic body and guide can develop slop over time, and once the bushing loosens, your hole accuracy suffers. Treat this as a gateway tool that either serves your occasional needs or proves you need a professional upgrade.

4. Kreg KHI-CDIJ Cabinet Door Mounting Jig – Solo Installer’s Helper

The Kreg KHI-CDIJ is not a drilling jig; it is a mounting jig, and that distinction matters. After you have drilled your hinge cups with any of the boring jigs above, this tool holds the cabinet door in perfect alignment while you drive the mounting screws. I used it alone to hang fourteen doors in a basement bar build, and it honestly felt like having a second pair of hands in the room.

The two micro-adjustment shims let you dial in the reveal gap between the door and the face frame with surprising precision. I started with a three-sixteenths gap, decided it looked too tight, and adjusted the shim to a quarter inch without removing the door. That kind of on-the-fly tuning is hard to do by hand, especially when you are working alone and holding a drill in one hand and a door in the other.

Technically, the jig works with both frameless and face-frame cabinets, which makes it versatile for mixed jobs. The metal body is rigid enough for standard plywood and MDF doors, though I did add a small spring clamp when I hung a pair of solid cherry doors that weighed close to twenty pounds each. The support arm can flex slightly under that load, but a simple clamp at the bottom solves the problem completely. The blue anodized finish is also easy to spot against wood, so I never left it behind on a job site.

Setup takes about ten minutes the first time you use it, because you need to understand how the shims interact with the hinge arm. Once you have hung two or three doors, the process becomes muscle memory. I timed myself at about three minutes per door from clamping to final screw tightening, which is faster than any helper I have ever worked with.

Best for Solo Installation Without Extra Hands

If you do cabinet work by yourself, this jig is almost mandatory. Holding a door flush, level, and at the correct height while driving screws is frustrating and often leads to misaligned doors. The KHI-CDIJ eliminates that struggle entirely and gives you the confidence to tackle large installs alone.

Best for Precise Door Alignment and Perfect Gaps

The micro-adjustment shims are the real secret here. Even a small gap inconsistency between two cabinet doors looks unprofessional. Being able to adjust the reveal in one-millimeter increments means you can get every door in a run to look identical, which is the difference between a DIY look and a custom cabinet install.

5. KREG KHI-Hinge Concealed Jig Bundle – Premium Precision

This KREG bundle pairs the classic KHI-Hinge concealed jig with the KHC Premium Face Clamp, and it is the setup I used for several years before upgrading to an all-metal model. The indexing tabs are the standout feature. They let you position the jig at the exact same distance from the door edge every time, which removes the need to measure and mark with a tape. I found that feature incredibly helpful when I was still learning how hinge offsets work.

The measuring scales built into the body are etched clearly and read in both millimeters and inches, which is nice if you work with European hardware on American cabinets. The included Forstner bit is sharp and stays that way through a surprising number of holes. I drilled about forty hinges before I noticed any dulling, and even then it was still cutting cleaner than most third-party bits I have bought.

Technically, the jig handles standard 35mm cup holes with a built-in depth stop that prevents over-boring. The face clamp is the real bonus here. It applies even pressure across the jig body and keeps the drill guide flat against the door, which is especially important when you are working with slightly warped stock. The clamp pad is wide enough that it does not leave dimples in soft pine, which was a problem I had with smaller clamps on other jigs.

The plastic collar around the drill guide is the known weak point. After drilling about eight or nine consecutive holes in hard maple, the collar can soften and distort slightly from the heat. I learned to pause between doors and let it cool, or work with a slower drill speed. The included face clamp does justify part of the bundle price, but if you already own a good clamp, you might be paying for redundancy.

Best for Professional Results on Tight Tolerances

For installers who need consistent hole placement within a millimeter, this jig delivers. The indexing tabs and etched scales remove human error from the measuring step, and the rigid clamping keeps the bit vertical. If your hinges cost twenty dollars each and you cannot afford a mis-drilled door, this level of precision matters.

Best for the Included Face Clamp Value

The KHC face clamp is a quality tool on its own. It has a wide pad, smooth trigger action, and enough throat depth for most cabinet doors. If you do not already own a dedicated face clamp for jigs, the bundle saves you about fifteen dollars compared to buying the jig and clamp separately.

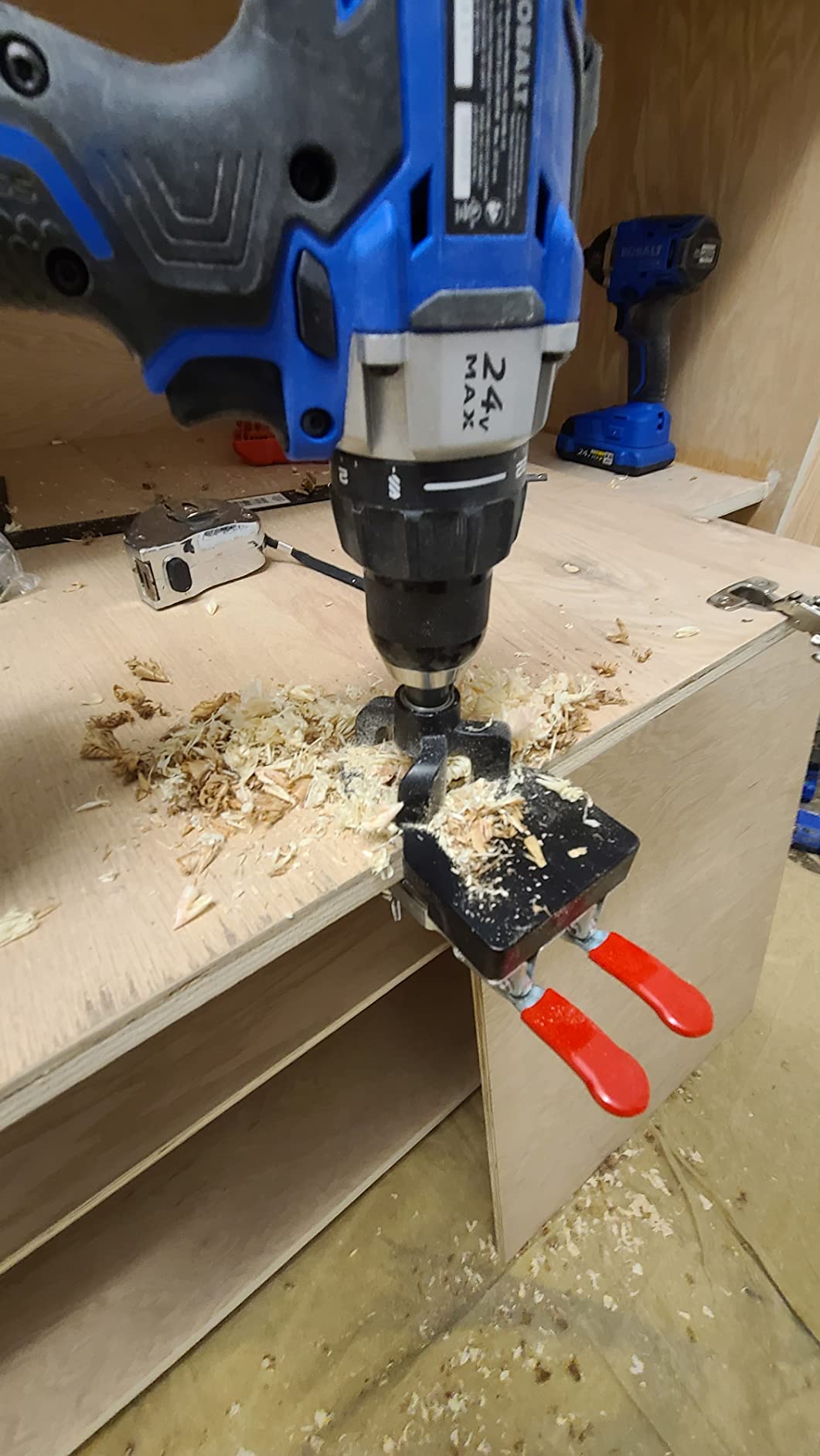

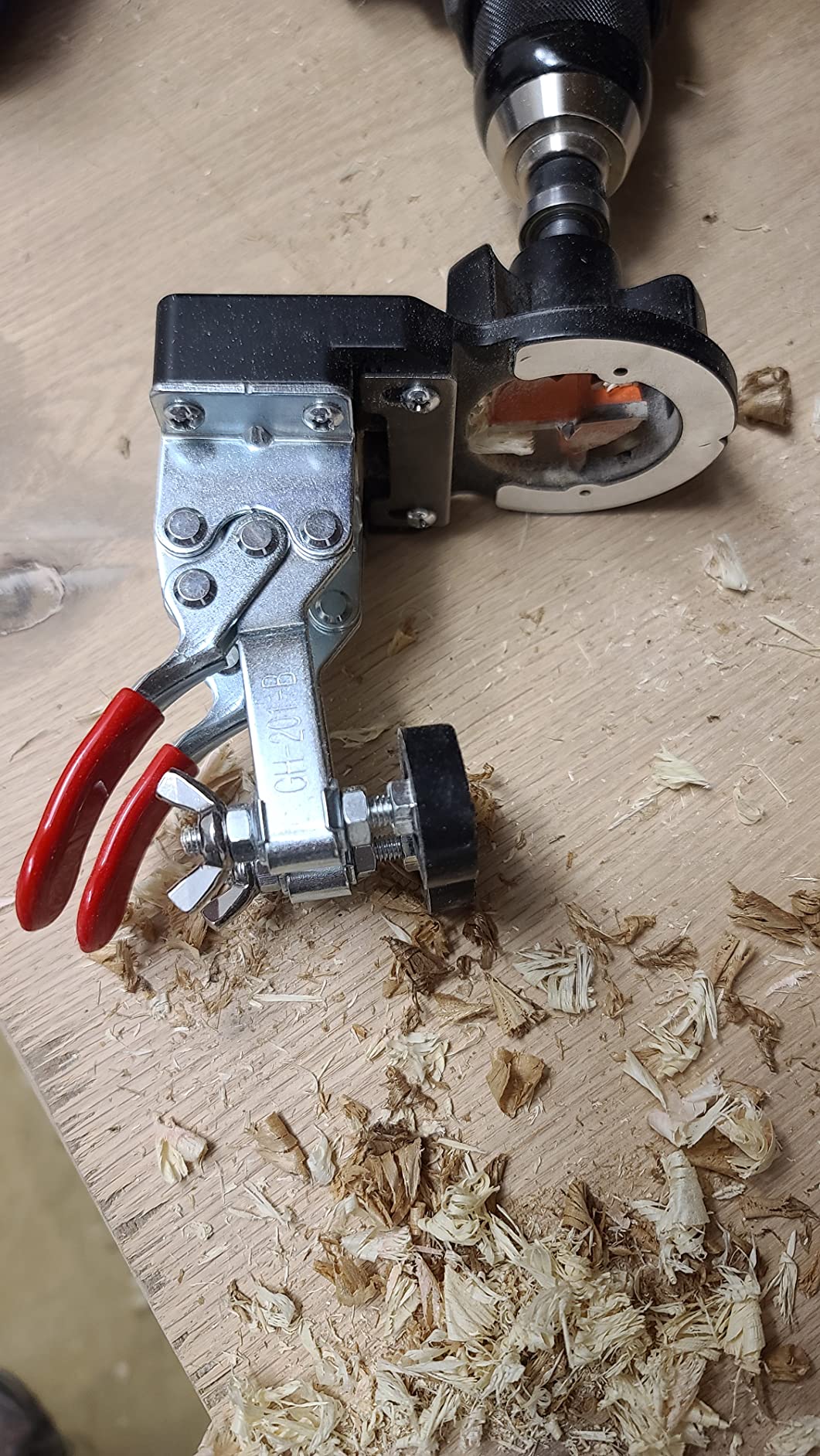

6. Adoles 35mm Concealed Hinge Jig – Three-Bearing Precision

The Adoles hinge jig surprised me with its three-bearing drill sleeve. Most jigs in this price range use a single bushing or a simple hole guide, but the triple bearing setup keeps the Forstner bit perfectly centered with almost zero lateral play. I tested it on a set of Baltic birch doors that were just over eighteen millimeters thick, and every hole came out clean and perfectly vertical.

The adjustable double cleat design is another strong point. It clamps onto the door edge with two points of contact instead of one, which prevents the jig from rocking during the cut. I especially liked this feature when drilling near the top or bottom of a door, where a single-point clamp can flex and shift the hole position. The aluminum alloy body has a matte finish that resists scratches and does not reflect shop lights into your eyes while you work.

Technically, this jig is designed for panels between fifteen and twenty-five millimeters thick, which covers most standard cabinet doors. The three bearings distribute heat better than a single bushing, so I was able to drill ten consecutive holes without the sleeve binding or the bit smoking. The included 35mm bit is decent for softwoods and MDF, but I swapped in a higher-end bit for hardwoods and got even better results.

The measurement markings are the one area where the design falls short. The etched numbers are small and sit in a recessed channel that can collect dust, making them hard to read in dim light. I ended up using a small flashlight and a magnifying glass during the first setup. Some users also report receiving dull bits, though mine was sharp out of the box. Quality control on the accessories seems inconsistent, but the jig body itself is very well made.

Best for Accuracy on Thin to Medium Panels

If you build European-style cabinets with 18mm or 19mm panels, this jig is dialed in for that thickness range. The double cleat grips thin edges securely without deflecting the material, and the bearing guide keeps the bit from wandering. For frameless cabinet builders, that combination is exactly what you need.

Best for Bearing-Smooth Drilling Action

The three-bearing sleeve is noticeably smoother than single-bushing designs. You feel less vibration through the drill handle, and the bit cuts with a consistent sound instead of the chattering you get from cheaper guides. That smoothness translates to cleaner hole walls and better hinge cup fit, which means your doors will align properly without extra shimming.

7. BI-DTOOL 35mm Hinge Drilling Jig – Adjustable Offset Options

The BI-DTOOL jig is the most beginner-friendly option we tested, mostly because of the adjustable dial system. Instead of loosening screws and sliding a fence, you simply rotate a dial to select 3mm, 4mm, 5mm, or 6mm offset. I handed it to a friend who had never installed a cabinet hinge in his life, and he drilled a perfect cup hole on his first try. That kind of intuitive design is rare in woodworking jigs.

The included bit is genuinely sharp. I ran it through six softwood doors and two hardwood test pieces, and the rim stayed clean with no tear-out. The engineering plastic body is rigid enough for light to medium use, though it does not have the same confidence-inspiring feel as the aluminum models. The compact size also makes it easy to store in a small toolbox or carry to a job site in a tool bag.

Technically, the dual compatibility with 35mm and 26mm hinges is a nice bonus. Most kitchens use the 35mm European standard, but smaller 26mm hinges show up on bathroom vanities and furniture pieces. Having one jig that handles both sizes saves money and drawer space. The depth stop is integrated into the dial mechanism, which keeps the overall profile slim and prevents the stop from catching on door edges.

The inconsistency issues mentioned by some users are worth noting. On a few test runs, I noticed that the 5mm setting landed slightly closer to 4.8mm on one side of the dial. It was not enough to ruin a hinge installation, but it is the kind of tolerance issue that matters if you are building high-end furniture. I also saw scattered reports of missing parts in the box, so inspect the kit immediately upon delivery and contact the seller if anything is absent.

Best for Versatile Offset Across Multiple Hinge Brands

The 3mm to 6mm range covers most major hinge brands, including Blum, Salice, and Grass. If you work on kitchens with mixed hardware from different manufacturers, the dial system lets you switch offsets in seconds without recalibrating the entire jig. That flexibility is a big time saver on remodel jobs where you are matching existing hinges.

Best for Beginner-Friendly Operation

If you are intimidated by the setup process on other jigs, this is the model to buy. The dial removes all guesswork, the instructions are printed in large readable text, and the compact body is easy to hold steady. You can go from unboxing to drilling in under five minutes, which is exactly what a first-time cabinet builder needs.

8. TANYO 2-in-1 Shelf Pin and Hinge Jig – Dual-Function Versatility

The TANYO jig is the only tool on this list that doubles as a shelf pin drilling guide. I tested it during a full walk-in closet build where I needed both hinge cups and shelf pin holes for adjustable shelving. Instead of switching between two jigs, I clamped the TANYO, drilled the hinge cup, slid the fence to the shelf pin section, and drilled the pin holes. The whole process took about half the time of my normal two-jig routine.

The aluminum alloy construction is solid, and the red anodized finish makes it easy to find in a cluttered shop. It comes with four hardened steel bits: 35mm for the hinge cup, plus 5mm, 6mm, and 2mm bits for shelf pins and pilot holes. All four bits cut cleanly during my tests, and the 5mm bit handled a full run of forty shelf pin holes without any noticeable dulling.

Technically, the offset adjustment covers 37mm, 50mm, and 64mm settings, which is a slightly different range than most euro hinge jigs but covers the most common face-frame and frameless standards. The eleven shelf pin holes are spaced at one and a quarter inches on center, which matches the standard used by most closet systems and kitchen cabinets. The clamping range is wide enough for three-quarter-inch to one-inch stock, and the guide bushing has a steel insert that should resist wear over time.

The trade-off is speed. Because the jig is longer and heavier than a dedicated hinge jig, it takes a few extra seconds to position and clamp for each hinge hole. The setup process also involves more steps because you need to align both the hinge section and the shelf pin section. For a job that requires both operations, the time savings are obvious. For a job that only needs hinge holes, a smaller dedicated jig is faster to handle.

Best for Combined Shelf and Hinge Work in One Tool

If you build bookcases, closets, or pantry cabinets that need both concealed hinges and adjustable shelves, this jig eliminates the need for a separate shelf pin template. The accuracy is good enough that your shelf pins will line up perfectly level, and your hinge cups will seat at the correct depth. For a home renovator who does a mix of projects, that versatility is hard to beat.

Skip This If You Only Need Dedicated Hinge Speed

If you only install cabinet doors and never drill shelf pins, the extra length and weight of this tool will slow you down. It also costs more than a basic single-function jig. Buy this model only if you genuinely need both capabilities, or if you want one tool that handles the two most common cabinet drilling tasks.

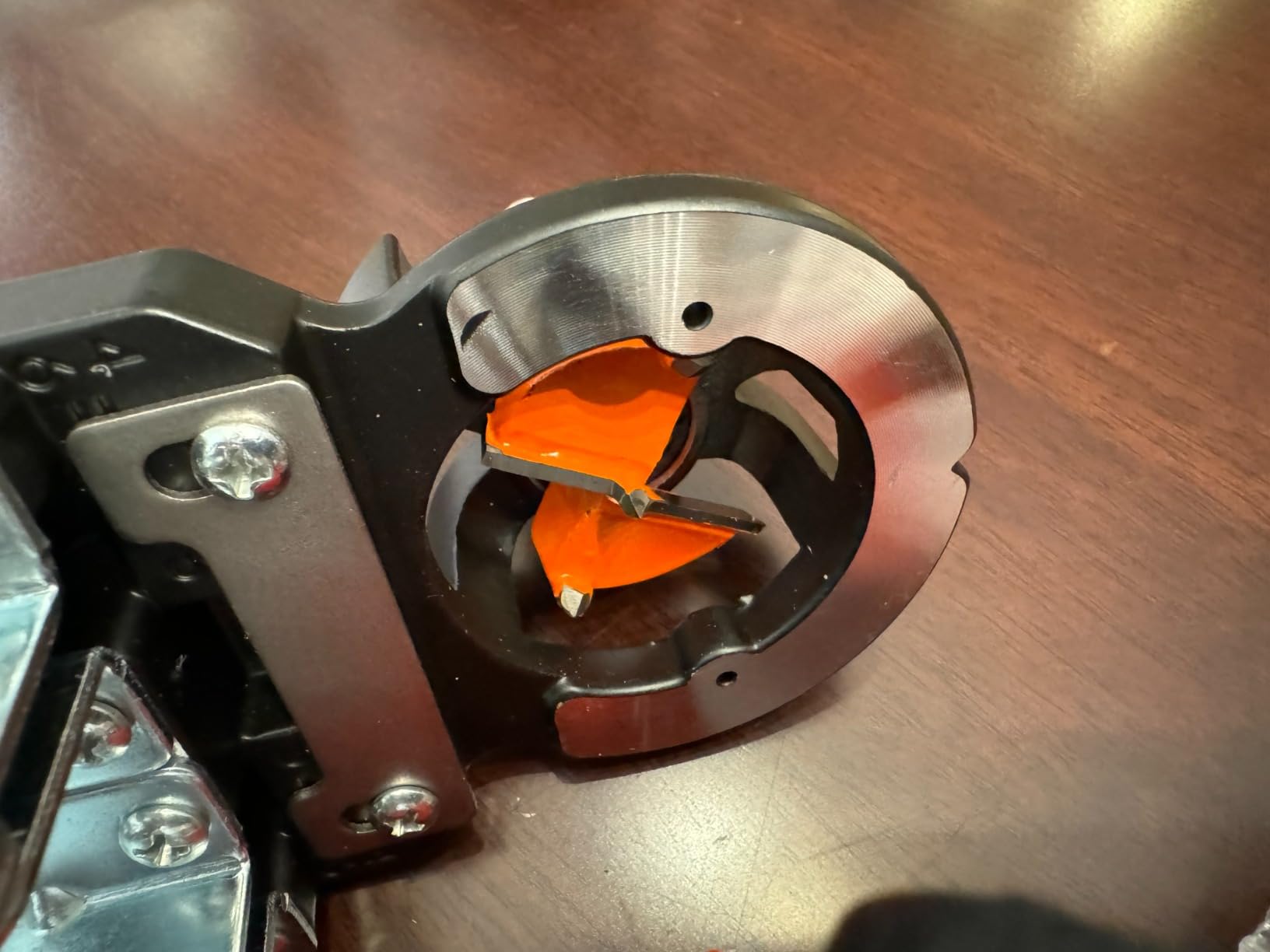

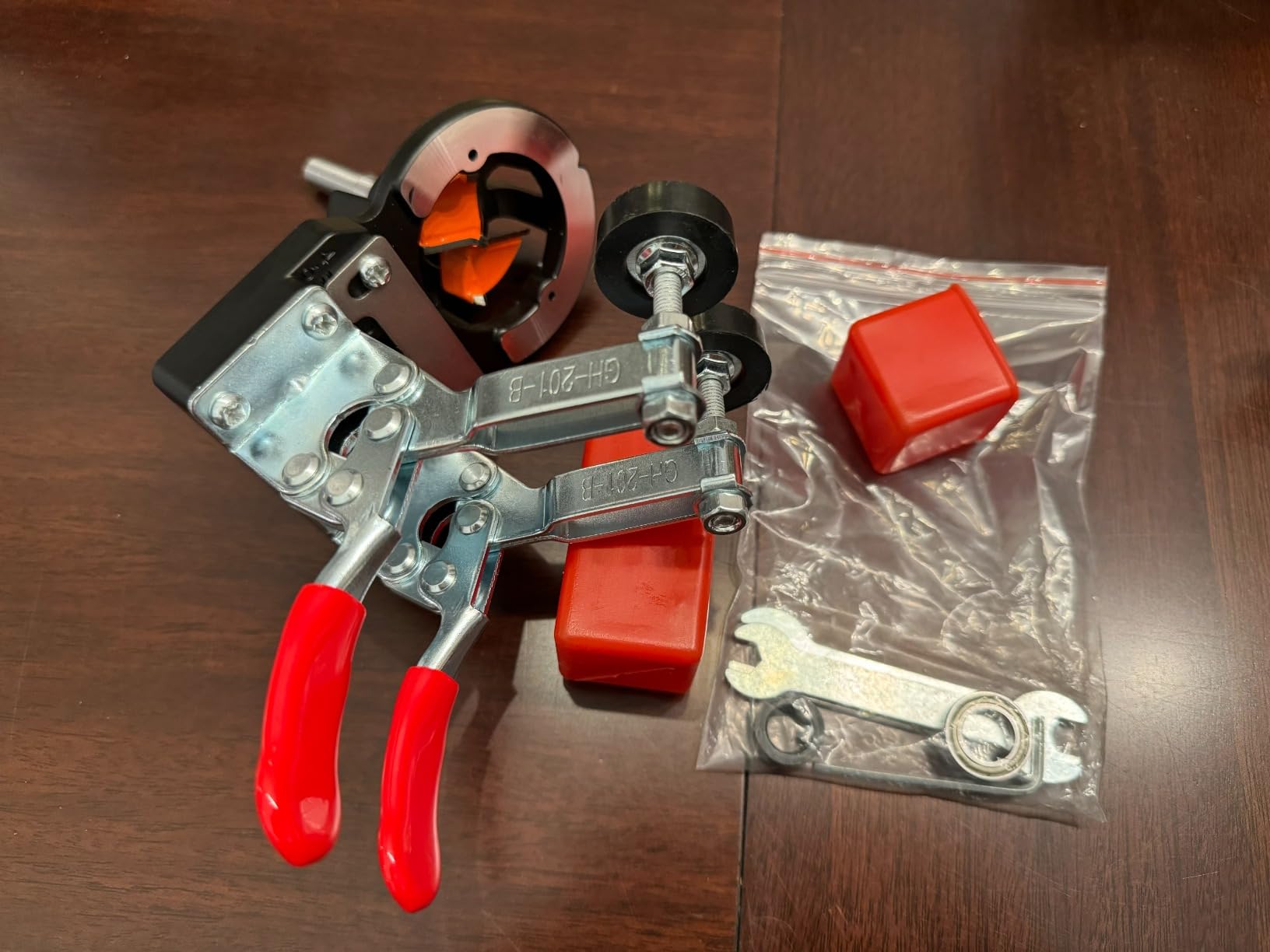

9. XUNTOP 35mm Concealed Hinge Jig – Double-Clip Stability

The XUNTOP jig sits right in the middle of the price range, and it offers a feature that many budget jigs skip: a double-clip clamping system. The two clips grip the door edge from both sides, which keeps the jig from shifting laterally when you push the drill down. I used it on a set of wide pantry doors that were almost twenty-four inches tall, and the extra stability was noticeable compared to single-clamp models.

The aluminum alloy body is machined cleanly, and the drilling sleeve includes bearings that keep the bit from binding in the bushing. I drilled about fifteen holes in a single afternoon, and the bit never caught or stalled. The included hole saw has a stop ring to control depth, which is a nice addition at this price point. The two wrenches and Allen key are basic but functional, and they let you adjust the offset without digging through your toolbox.

Technically, the jig is adjustable for different board thicknesses, which is important if you work with both standard three-quarter-inch doors and thicker one-inch panels. The seven-point-one-inch length gives you a good base for larger doors, though it can feel bulky on small drawer fronts. I recommend supporting the opposite end of the door with a scrap block to keep everything flat while drilling.

The included bit is acceptable for softwoods and MDF, but it struggled a bit with white oak. I swapped in a higher-quality Forstner bit and saw an immediate improvement. Some users report issues with the bolt and wing nut quality, and I did notice that the wing nut had a slightly rough thread that required a drop of oil to turn smoothly. The bearings also benefit from a light spray of lubricant every few projects to keep them spinning freely.

Best for Stability on Wider Cabinet Doors

The double-clip design shines when you work with tall or wide doors that flex under pressure. Single-clamp jigs can pivot on the edge, but the XUNTOP grips firmly enough that you can drill near the top corner without the door tipping. That makes it a good choice for pantry builds and full-height cabinets.

Best for Budget-Friendly Occasional Projects

At this price, the XUNTOP is a solid choice for hobbyists who need a metal jig but cannot justify the premium models. It is not perfect, but the double-clip stability and bearing-guided sleeve are features you usually find on tools that cost twice as much. If you install hinges a few times a year, this jig will serve you well without breaking your budget.

10. SMATOLS 35mm Concealed Hinge Jig Kit – Budget Entry Point

The SMATOLS kit is the cheapest option we tested, and it is the one I recommend to anyone who is not sure whether they will install more than one or two sets of hinges. The adjustable bumpers are the cleverest part of the design. You simply flip them to select the offset you need, which is much faster than unscrewing and sliding fences. I drilled a pair of hinges on a bathroom vanity door in under five minutes, and the holes were accurate enough that the door closed flush with the frame.

The kit includes nine pieces: the jig body, the 35mm bit, a depth stop, a small drill bit for pilot holes, and a few adjustment wrenches. You do not get the same precision feel as the aluminum jigs, but the polymer body is surprisingly rigid for light work. I would not drop it on a concrete floor, but for gentle shop use it holds up fine. The bit included in my kit was straight and sharp, though I have seen mixed reports on that.

Technically, the jig works best with standard face-frame cabinets and common European hinges. The 35mm guide bushing is molded directly into the polymer body, which keeps the weight down but also means you cannot replace the bushing if it wears out. I drilled about twelve holes with my test unit and saw no noticeable wear, but I would be cautious about running this through a full kitchen of thirty doors. The depth stop is functional but basic, and I checked it with a manual caliper just to be safe.

The biggest downside is the instructions. They are printed in tiny text on the outside of the box, and they are not particularly clear about how to set the offset bumpers. I ended up watching a short online video to understand the setup, which took about three minutes. Once I understood the bumper system, it was easy. If you are buying this for a parent or someone who avoids online tutorials, plan to spend a few minutes explaining the setup.

Best for Quick Setup on Small Kitchen Projects

For a small kitchen with eight to twelve doors, this jig is perfectly adequate. The adjustable bumpers let you set the offset once and then drill every door without remeasuring. The included bit is sharp enough for softwoods and MDF, and the whole kit costs less than a dinner out. If you are a renter or a new homeowner doing your first cabinet refresh, this is a low-risk way to get professional-looking results.

Upgrade to a Metal Jig for Full Kitchen Builds

If you finish that small project and decide you want to keep building cabinets, you will quickly outgrow this plastic jig. The bushing will wear, the bumpers may loosen, and the body can flex under heavy drilling. Treat it as a starter tool that either solves your immediate need or proves you should invest in a metal model like the GOINGMAKE or Adoles jigs.

What to Look for in a Concealed Hinge Jig

Choosing the right concealed hinge jig comes down to four factors that separate a useful tool from one that will collect dust in your drawer. I have broken each one down based on what I learned from drilling hundreds of holes and reading through real owner feedback from forums and reviews.

Metal Jigs Last Longer for High-Volume Work

Metal jigs, usually aluminum alloy, resist flex and heat better than plastic models. They cost more upfront, but they last for years of regular use without the guide bushings loosening. Plastic jigs are fine for occasional projects and budget builds, but they warm up during long drilling sessions and can develop slop in the bushing after repeated use. If you plan to drill more than twenty hinges per year, metal is worth the investment.

From our testing, the GOINGMAKE and Adoles aluminum models stayed rigid through hundreds of holes, while the plastic collars on the Kreg bundle and the BI-DTOOL body showed heat stress after ten consecutive holes. That does not mean plastic is bad; it just means metal is better for high-volume work.

Preset Offset Dials Save Serious Setup Time

European hinges come in different offset sizes, typically 3mm, 4mm, 5mm, or 6mm. A good jig should let you switch between these settings without disassembling the entire tool. The BI-DTOOL dial system and the GOINGMAKE clamp designs both make this easy, while the SMATOLS bumper system is simpler but slightly less precise. Before you buy, check the offset range against the hinges you plan to use.

Some jigs also include extra screw hole guides for the mounting plate, which saves time on the cabinet frame side. The GOINGMAKE 3-Axis Ultra is the only model here that includes a dedicated hinge screw hole guide, and it is a feature that professional installers will appreciate immediately.

Integrated Clamps Speed Up Solo Work

A jig that rocks or pivots on the door edge will produce crooked holes. Look for double-clip or wide-base designs like the XUNTOP and Adoles models, which grip the door with two points of contact. If you work with wide or tall doors, a single clamp may not be enough, and you will need to support the free end with a scrap block. Quick clamps are also a nice feature because they let you reposition the jig between holes without fumbling with threaded knobs.

Vacuum Adapters Keep Sight Lines Clear

Forstner bits produce a lot of chips, and those chips can shift the jig between holes. A vacuum adapter, like the one included on the GOINGMAKE metal models, keeps the work surface clean and the jig seated flat. If you work inside a client home or a small garage shop, dust collection is not a luxury. It is a necessity that prevents scratches on finished doors and keeps you from tracking sawdust through the house.

Verify 35mm or 26mm Compatibility Before Buying

Some jigs only work with standard 35mm cup hinges, while others accommodate 26mm or specialty sizes. If you use Blum, Salice, or other premium brands, verify the pilot hole spacing matches the mounting plate pattern before buying. Face frame cabinets and frameless cabinets also need different offset settings, so make sure the jig you choose supports your cabinet style or has adjustable bumpers to handle both.

FAQs

These are the most common questions we see from readers and forum members who are just getting started with concealed hinge installation.

Final Thoughts on Concealed Hinge Installation Jigs for 2026

After drilling hundreds of holes and hanging dozens of doors, our top recommendation for 2026 is the GOINGMAKE 3-Axis Ultra for professionals and the GOINGMAKE Metal Pro for most DIYers who want durability without the premium price. Both models deliver the accuracy, repeatability, and dust collection that make concealed hinge installation feel effortless instead of stressful.

If you are just starting out, the Milescraft 1342 or BI-DTOOL will get you professional results without a big investment. And if you work alone, do not skip the Kreg KHI-CDIJ mounting jig. It turns a two-person job into a smooth solo project. The right concealed hinge installation jig saves time, saves doors, and saves your sanity.
